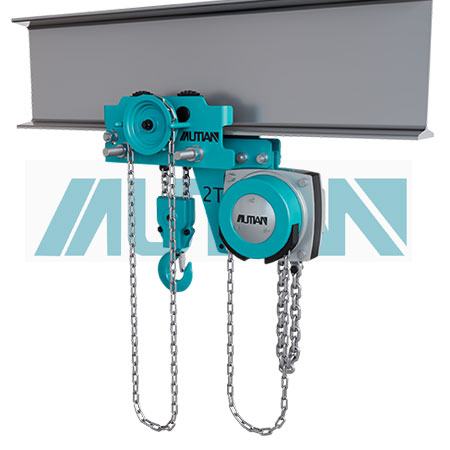

Ultra-low headroom MSSLH Integrated push or pull trolley combination is MSS Upgraded products, suitable for With lower clearance requirements.

Load range: 0.5T-10T

Product Features

• The newly developed chain guide pulls the lifting chain from the side of the hoist body, almost flush with the steel beam.

• Use the same integrated trolley as MSS IT.

• Hoists in this series with rated loads below 3,000 kg all adopt single-chain structure.

• The trolley is very easy to install and adjust, and can be precisely adjusted according to the width of the steel beam.

• The trolley can be set to two basic standard specifications. The A-type trolley is suitable for I-beams with a maximum width of 180 mm.It can be easily converted to B-type to fit I-beams with a maximum width of 300 mm.

• The wheel design of the trolley ensures maximum track contact surface, while the lubricated sealed ball bearings ensure the steel quality.Good running of the wheels.

• The trolley is standardly equipped with anti-fall and anti-tilt devices.

Product Options

• Overload protection device

• Chain bag

• Corrosion protection options

• Explosion proof option (ATEX)

• Car anti-collision block

• Trolley fixing device to prevent accidents Slide (especially suitable for use on discs)
