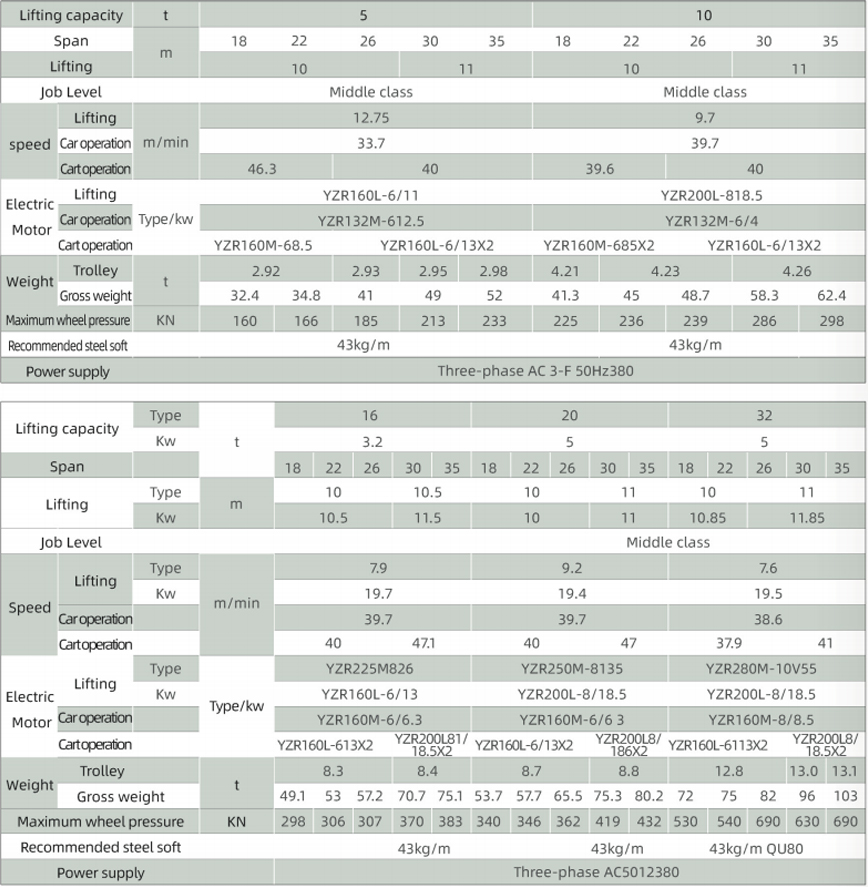

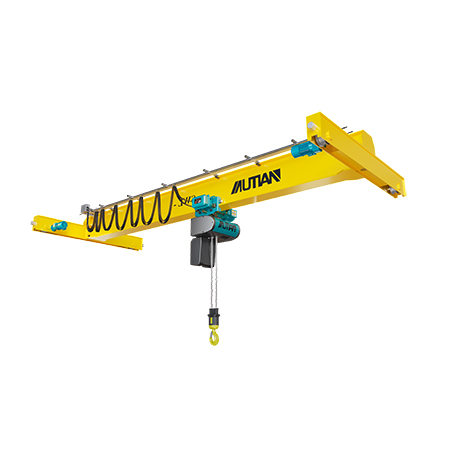

Lifting weight 1-32 tons, the span 7.5-28.5 meters, the work level 3 - the A5, working temperature 25 ° C: to 40 ° C.
In accordance with jB1306, enters design and production, and it is matched with MDE ring chain electric hoist and CD1 and MD1 wire rope electric hoist.
Widely used in factories and warehouses for material storage and cargo upgrading.
• multiple product options: A corrosion resistant B explosion resistant
Please give the following information when ordering:
1. Lifting weight (tons) 2. Span (meters) 3. Lifting height (meters) 4.Running speed (m/min) 5.Operation form (remote control cargo driver control room) 6. Operation room form (open cargo closed) 7.Operation room entrance direction (side or terminal) 8.Track type 9.Power source type
• can provide 5-225 tons of single and double beam cranes
