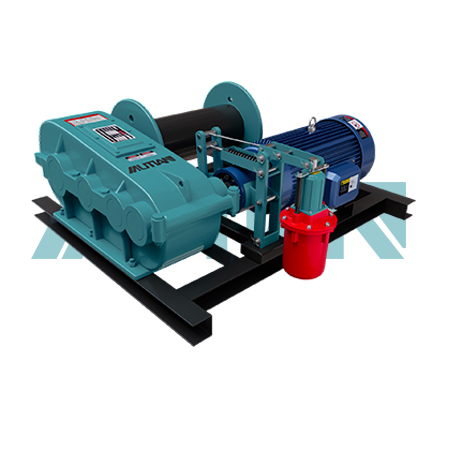

Low speed winch is also called winch

Working principle: The drum is driven by human or mechanical power and the rope is wound.A device for traction work. A simple lifting machine that lifts vertically, pulls heavy objects horizontally or tilted. There are two types: manual and electric, with electric being the main type.

Reel transmission structure

This structure adopts planetary gear transmission mode, directly driving the reel through the coupling Rotate, and easily replace scrapped wire rope or change the direction of wire rope rotation.

Brake mechanism

It adopts electromagnetic disk brake and wear-resistant brake pads. It has a simple structure and does not need to adjust the gap. When the power is off, the brake can brake automatically and quickly to control the sliding amount of heavy objects. It is safe and reliable.

Gear box

Made of ductile cast iron FCD-45#Copper casting, strong ductility, not easy to break.

Special motor

Use B The motor is specially designed for winches with grade 1 insulation, large starting rotor, small inertia, low temperature rise, and can be used frequently for a long time.

Transmission gear

Made of high-quality steel, special heat treatment and high-precision processing, it has the characteristics of strong wear resistance, low noise, high transmission efficiency and good mechanical properties.

Body fixing bracket

It is welded with standard channel steel and can be easily installed in different workplaces such as construction sites, storage docks, etc.
