Mini Controller

The mini controller allows easy one-handed operation of lifting, lowering, horizontal movement and loading. Further information is available on request.Explosion-proof classification:I3GDIIAT4.

Advantages in brief

The mini controller allows easy one-handed operation of lifting, lowering, horizontal movement and loading. Further information is available on request.Explosion-proof classification:I3GDIIAT4.

Practice has proved that

In any environment where safety is a priority, MUTIAN pneumatic hoists are the best choice. Compressed air as the driving medium will not produce any electric sparks. This structural feature makes MUTIAN pneumatic hoist particularly suitable for working in dangerous environments.

MUTIAN MPROFI series pneumatic hoists are very strong and reliable, so they are suitable for use in tough industries, even it can be operated under continuous working conditions. We have different controllers and rollers according to different needs. For horizontal loading, we have a variety of walking trolleys to meet your needs.

MUTIAN's MPROFI series pneumatic hoists have performed well in the following industries

Aircraft manufacturing, assembly lines, chemical industry, dairy processing plants, electroplating plants, fireworks factories, food industry, foundries, furniture factories, glass industry, paint factories, match factories, mechanical engineering, automobile industry, oil depots, onshore and offshore operations, paint shops, paper industry, power plants, finishing plants, sawmills, shipping industry, space technology, steel mills, textile industry.

Standard Features

Suitable for hazardous areas, sensitive stepless variable control can ensure accurate lifting of heavy objects and is easy to operate. Suitable for non-lubricated operation, Frequent operation and unlimited use. Low maintenance, insensitive to dust and humidity, temperature suitable for -20 degrees Celsius to 70 degrees Celsius, overload protection device for more than 1 ton (EC series).

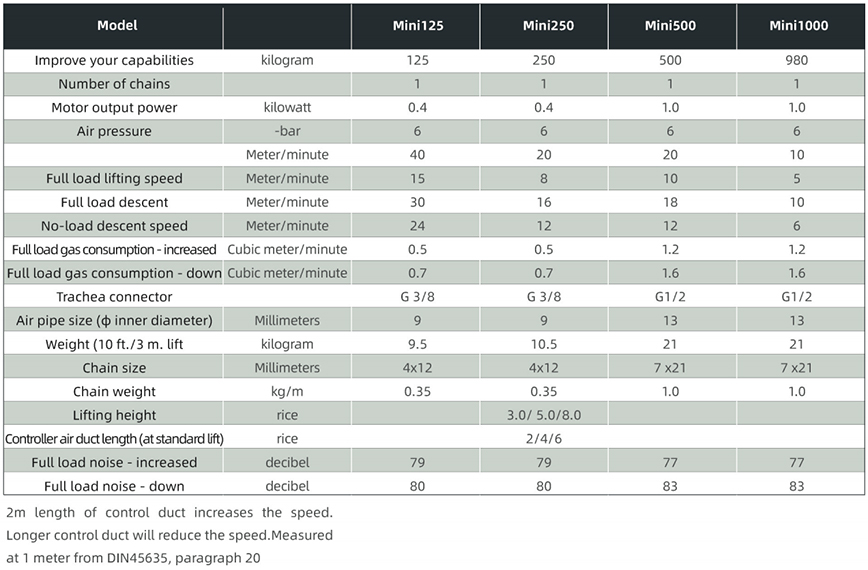

Technical details

Automatic fail-safe start, low maintenance vane motor, sprocket bearings are dustproof ball bearings, grease lubricated planetary gears, all gear teeth are made of high-quality steel that has been quenched and tempered, and the chain and hook are made of high-quality quenched and tempered steel. The safety factor is standard pull 5 times the force.

Advantages in brief

Powerful - Fast - Quiet: Increased power, extreme reliability and higher raising and lowering speeds. Low emission volume.

Safety first: Equipped with an emergency stop button to quickly cut off the air supply. Hoists of one ton or more are equipped with overload safety devices.

No need for lubrication: High performance grease is used to provide permanent motor lubrication during operation. Rights.

Patent for brake system: based on The design of the MU TIAN mini series proves that the equipment has low maintenance and wear during production. Avant-garde design - compact structure: The control air pipe and other components without protruding design make the MPROFI series less susceptible to damage during use and more suitable for horizontal hauling.

Frequent operation - no downtime, suitable for use in hazardous areas, explosion-proof classification is in accordance with the EC Machinery Directive standard in hazardous areas 94/9/EEC

Standard version: II2GDIIAT4/II3GDIIBT4 Enhanced spark protection configuration: II2GDIIICT4
