Lifting weight: 0.25 tons to 20 tons

MU TIANThe walking trolley can be used withMPROFIandMAll lifting tools in the series are compatible with:

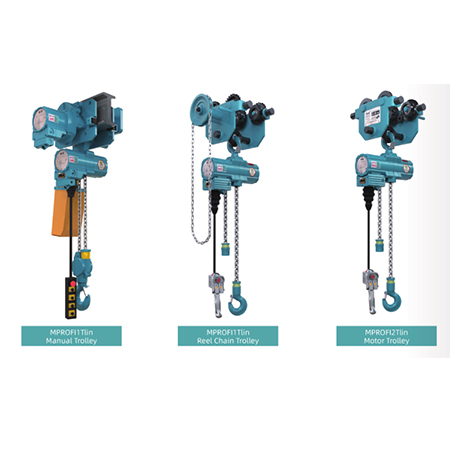

Hand-pull walking trolley(LN)Walking is achieved by pushing and pulling by human handsThe chain-back trolley (LH) moves by pulling the chain.

The motorized trolley (LM) is driven by a pneumatic motor.

Ways to replenish energy

Here are the different ways to replenish energy:

Chain gas supply pipeC-type trackSquare track.

Spiral air pipe Tracheal walking trolley

Standard Features

Easy to install

With anti-climbing and anti-fall equipment

Sturdy and durable, requires little maintenance and can travel in curves

Options

Rack and Pinion Drive Spark protection

equipment

Offshore paint

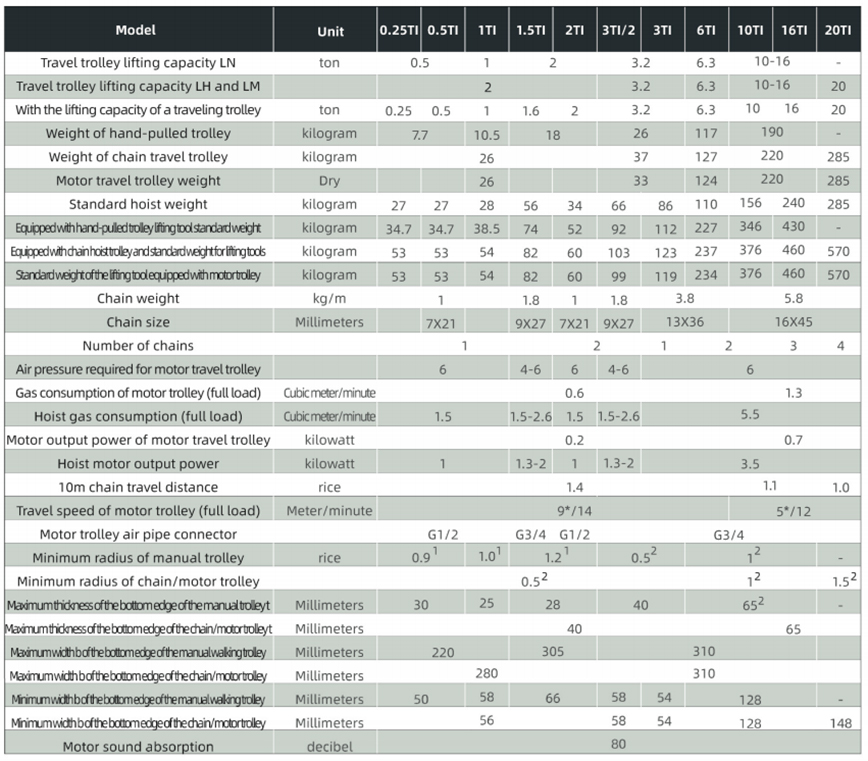

The name of the walking car is composed of a series of abbreviations.(LN, LH, LM) Load capacity is shown in the table below.LN1 ton.

1.Measure at the middle of the beam

2. Measure at the inner edge of the beam

3.Measured at 1 meter from DIN45635, section 20

4.6 bar

5.55 mm, if the hoist is suspended*If the lifting capacity exceeds 20 tons, please refer toMU TIAN pneumatic monorail hoist (page 26)

*With single or double hook (Example: BBH, see page 23

*Low clearance trolleys are suitable for restricted clearance areas, see page 21
