+ Innovation

The new "Perfect Push" Design,4-layer lifting nut, 4 lifting machine movement discs.

This innovation avoids any risk of mergers, thus ensuring the direction of the chain.

• Waterproof grade    IP66

• Implementation SQP2     D8+

More security

※ D8+(SQP2) as standard, and no brakes D8 Stagemaker SL&SR

※ In order to improve the safety of use, double brakes are standard

.※ Crane standards IP66 Protect.

※ New torque limiter concept. The gearbox positioning of the clutch ensures The device remains in contact with the load brake regardless of the c

all requirement.

※ Designed for MUTIAN Manufactured electroplated chains(G100).

※ There is no thermal protection inside the engine (version B).

Optional Hardware

※ Simple brake

※ Control via push button box

※ 4/8/12 channel controller

※ Low voltage controller(48V)-B Version

※ Wide flight case option

※ Self-locking hook

※ Use a ring instead of a hook

※ Industrial Chain Guide

※ Encoder

※ Load measurement system

※ Rain guard

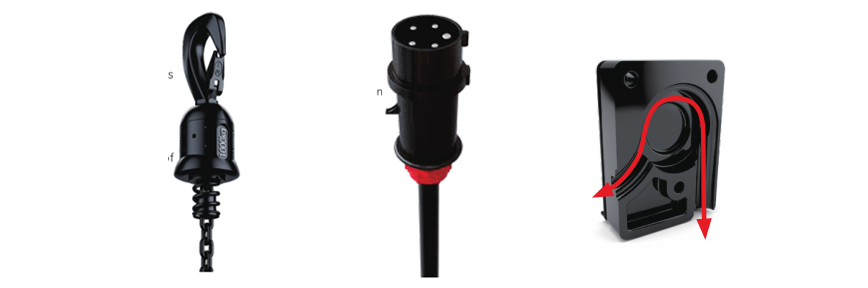

※ Special contour design at the lifting nut outlet Achieve smoother horizontal flow of the chain.The material has excellent friction coefficient characteristics, which can significantly improve the chain's passability under drainage conditions.The lifting nut plane integrates a drainage groove structure to achieve efficient fluid discharge.

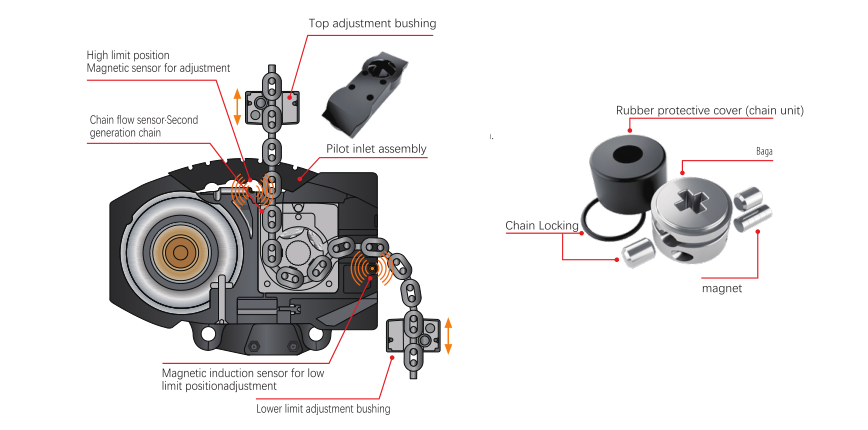

※Limitflux and CHAIN Flux MKI® is an integrated magnetic end-of-travel system. The system allows the control of a hook or lifting device in a climbing or industrial suspension configuration (only B Model). The accuracy data of this system is for a single link given.The limit adjustment is achievedby moving the two end pointsalong the lifting chain.

Better Comfortability

※ Working noise level reduced to 60 decibels (test certification provided)

※ Operated by simple chain lock, can be used as an industrial suspension unit or as a standard climbing crane

※ Rotatable upper and lower hooks

※ Rubber cushions at the four corners of the crane provide additional protection

※ Lifting motor (crane motor) ensures stable running speed regardless of load status

※ Electrical components are plug-and-play capable

Excessive energy saving

Maintenance is now easier, faster and more economical

※ Torque limiter easily adjustable※ Easy access to electrical components and fuses

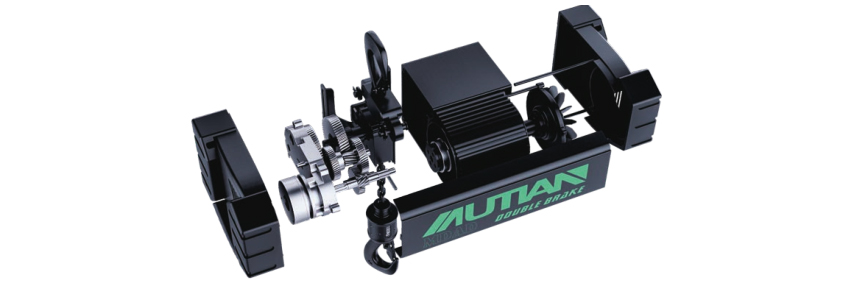

※ New modular motor design, supports quick disassembly and assembly

※ Brake coupling visual inspection window

• Enhanced ergonomics design

• ※ The motor adopts an oval structure design, ensuring smooth chain conveyance even when ring-shaped chain accumulation occurs at the top of the crane. The fully fluidized, precise and streamlined structure not only demonstrates process reliability, but also significantly enhances safety perception.The new generation of high-speed contour lines enables the MDA series to achieve deep system integration with performance environments (such as lighting and sound elements).

• ※ The crane complies with environmental regulations(RoHS Compatible )

• ※ The main body of the crane adopts 70μm Black epoxy powder coating protection, suitable for -10℃To +40℃ harsh working environment.

•
