ted load: 0.1-10 tons

• lication: strong suction, no residual magnetism, light weight, safe and reliable, easy to operate

• Maintains constant and reliable magnetic force, no demagnetization, no electricity required

• The damping force of the handle is 30%-40% of that of the single magnetic circuit jack, and has a wider range of applications.

• The bottom "V" groove design can be used to hang steel plates and round steel

• More suitable for thin-walled ferromagnetic materials, even steel plates with a wall thickness of 5mm-10mm

• Used alone or in combination with other machines to move long and large ferromagnetic materials

Features

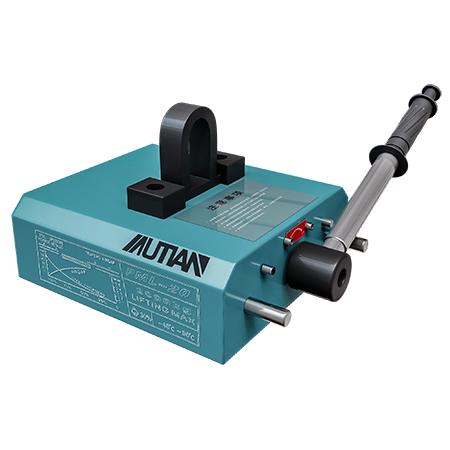

The double magnetic circuit permanent magnetic lifter is a series of products with strong magnetic circuit composed of strong magnetic NdFeB. The magnetic circuit system is controlled by rotating the handle to achieve the working purpose.It has the characteristics of strong suction, less residual magnetism, light weight and reasonable structure. In particular, the damping force of the handle is 30%-40% of that of the single magnetic circuit permanent magnet lifter, and the scope of application is wider. It can lift magnetic materials above 5mm, effectively solving the problem of low efficiency of single magnetic circuit permanent magnet lifting thin plates. The thin plate double magnetic circuit permanent magnet lifter adopts imported high-performance permanent magnet materials to form a strong magnetic system, which can strongly absorb the objects to be lifted, and the pull-off force can reach 3.5 times.

Fully enclosed welding is adopted, which is more dustproof, and the permanent magnetic chuck shaft is not easy to get stuck; high-performance permanent magnetic material, strong holding force, unique magnetic circuit design, and almost zero residual magnetism; The bottom "V" groove design can be used to hang corresponding round steel; it has passed ISO9001 and CE certification, etc., with a 1-year warranty.
